2305908-3

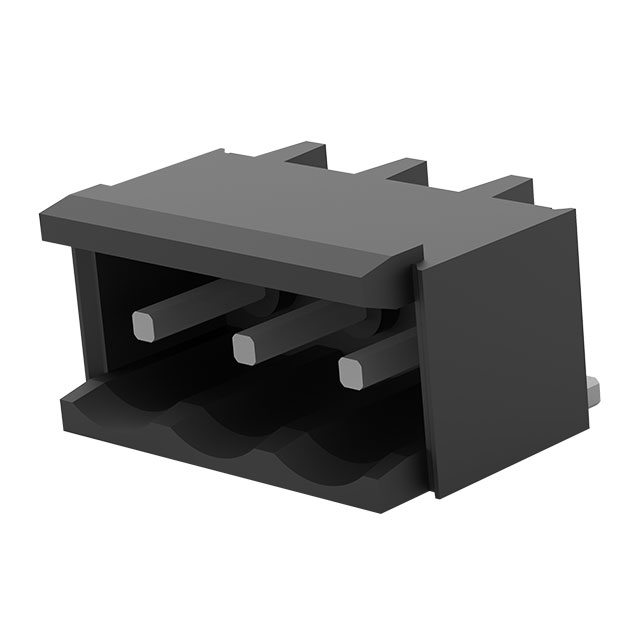

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2305908-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2305908-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2305908-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SMT TB R/A HEADER, 5.0MM, 3 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.984 | $0.745 | $0.691 | $0.621 | $0.606 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2305908-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SMT TB R/A HEADER, 5.0MM, 3 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59209 pcs | Data sheet | TB Series Datasheet2305908 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Blade Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | WireMate, Buchanan | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Cut Tape (CT) |
| Other Names | A126306CT | Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.370" (9.40mm) |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 3 Position Terminal Block Header, Blade Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Surface Mount | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
