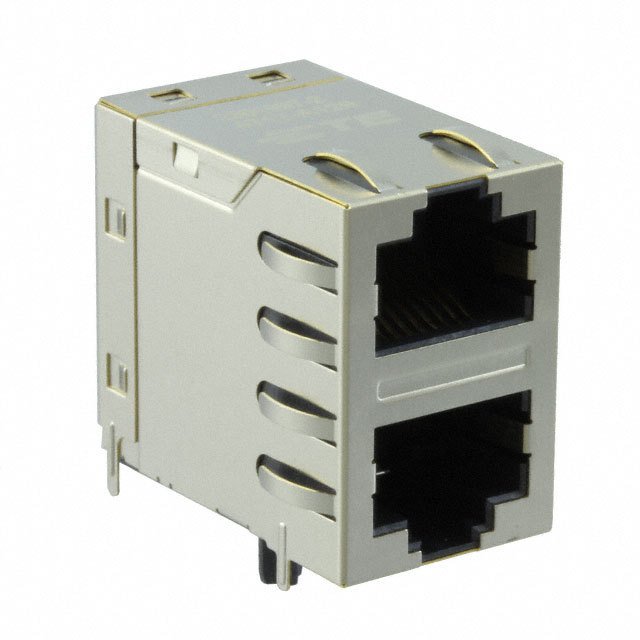

2301997-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2301997-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2301997-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2301997-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MAGJACK 2PORT 100 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $4.102 | $3.925 | $3.568 | $3.39 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $3.301 | $2.944 | $2.765 | $2.444 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2301997-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MAGJACK 2PORT 100 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13582 pcs | Data sheet | RJ45 Jacks Spec Sheet2301997-2 DrawingRJ45 Jacks Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up and Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | - |
| Packaging | Tray | Other Names | A126261 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Ports | 2 |
| Number of Cores per Jack | 4 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Liquid Crystal Polymer (LCP) | Height Above Board | 1.006" (25.55mm) |
| Features | Board Lock | Detailed Description | 2 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100 Base-T, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
