2301994-9

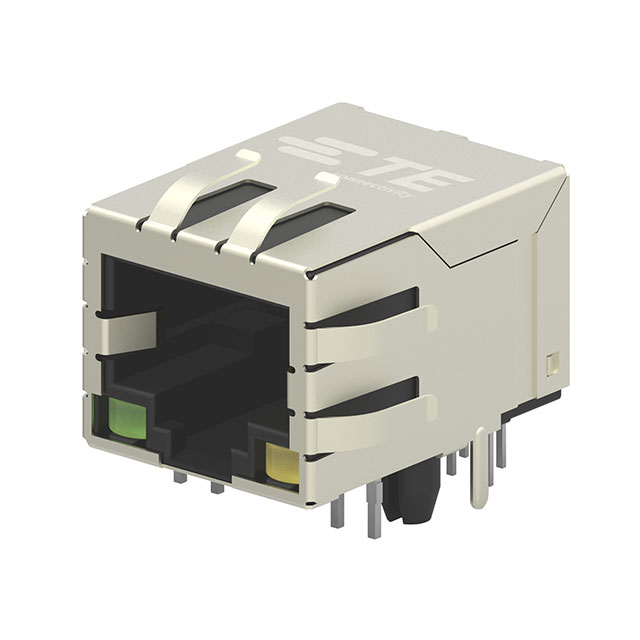

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2301994-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2301994-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2301994-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MAGJACK 1PORT 100 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 80 pcs | 160 pcs | 400 pcs | ||
|---|---|---|---|---|---|
| $2.118 | $2.012 | $1.80 | |||
| 560 pcs | 800 pcs | 2000 pcs | |||
| $1.695 | $1.589 | $1.451 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2301994-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23372 pcs | Data sheet | RJ45 Jacks Spec Sheet2301994-9 DrawingRJ45 Jacks Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | A126226TR |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green, Yellow - Green, Yellow |
| Housing Material | Liquid Crystal Polymer (LCP) | Height Above Board | 0.632" (16.05mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100 Base-T, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
