2301836-1

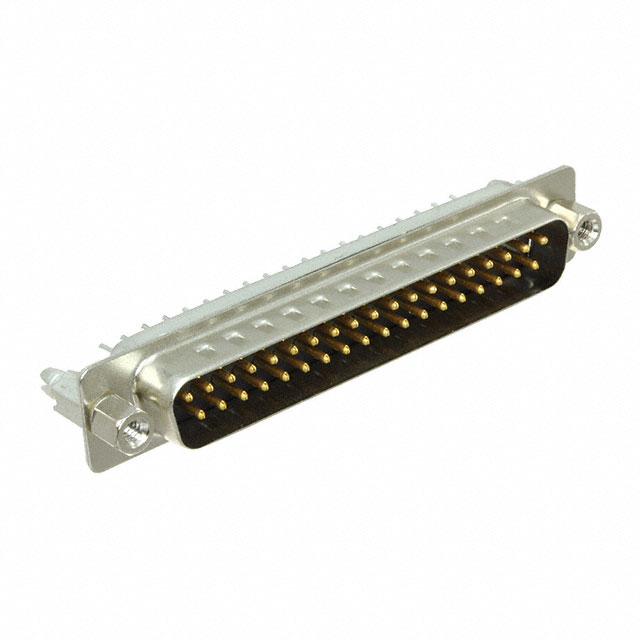

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2301836-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2301836-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2301836-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 37POS VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.756 | $1.685 | $1.545 | $1.475 | $1.404 | |
| 280 pcs | 520 pcs | 1000 pcs | 2520 pcs | ||
| $1.229 | $1.194 | $1.018 | $0.948 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2301836-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 37POS VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37471 pcs | Data sheet | 2301836 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 4 (DC, C) | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | AMPLIMITE HD-20 | Packaging | - |
| Other Names | 2301836-1-ND A132505 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 37 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 37 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 1.5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
