2293255-1

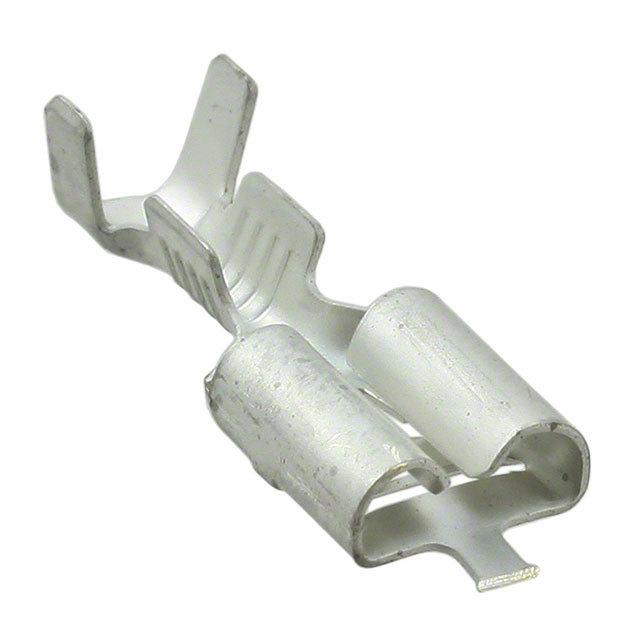

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2293255-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2293255-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2293255-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN QC RCPT 16-20AWG .187 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.044 | $0.04 | $0.03 | $0.025 | $0.025 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.021 | $0.02 | $0.018 | $0.016 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2293255-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN QC RCPT 16-20AWG .187 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1549688 pcs | Data sheet | .187 Series Spec Sheet.187 Series Datasheet2293255 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-20 AWG |
| Termination | Crimp | Terminal Type | Standard |
| Tab Width | 0.187" (4.75mm) | Tab Thickness | 0.032" (0.81mm) / 0.020" (0.51mm) |
| Tab Length | 0.248" (6.30mm) | Series | Faston |
| Packaging | Original-Reel® | Other Names | A125152DKR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Length - Overall | 0.591" (15.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.090" ~ 0.130" (2.29mm ~ 3.30mm) |
| Insulation | Non-Insulated | Gender | Female |
| Features | - | Detailed Description | 0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated |
| Contact Material | Brass | Contact Finish | Tin |
| Color | - |
