228658-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 228658-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 228658-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 228658-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN N JACK STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $30.726 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 228658-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN N JACK STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1156 pcs | Data sheet | 228658 |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 228658-1-ND A24661 |
| Operating Temperature | -65°C ~ 105°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

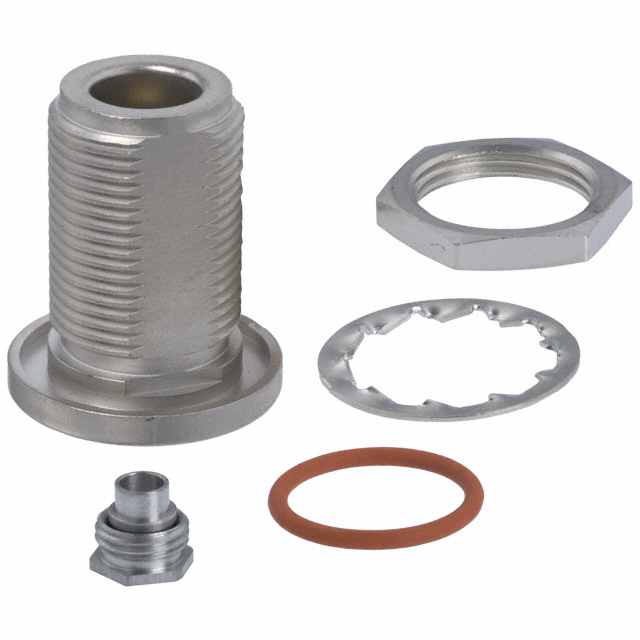

| Includes | 5 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 15GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Jack, Female Socket 50 Ohm Panel Mount |
| Contact Termination | - | Connector Type | Jack, Female Socket |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Brass | Body Finish | Nickel |
