228553-1

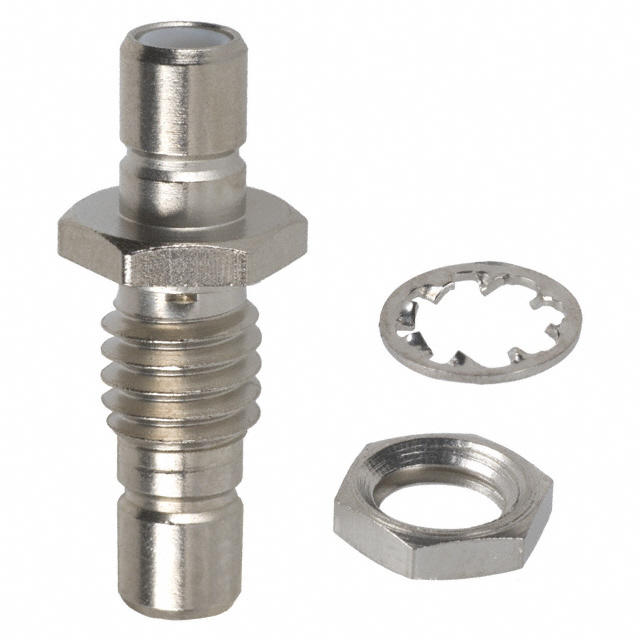

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 228553-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 228553-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 228553-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN ADAPT JACK-JACK SMB 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.661 | $3.50 | $3.182 | $3.023 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.943 | $2.625 | $2.466 | $2.18 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 228553-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK SMB 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16582 pcs | Data sheet | 228553 |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 228553-1-ND 2285531 A24697 |
Operating Temperature | - |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Snap-On, Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMB Jack, Male Pin To SMB Jack, Male Pin 50 Ohm | Convert To (Adapter End) | SMB Jack, Male Pin |
| Convert From (Adapter End) | SMB Jack, Male Pin | Conversion Type | Same Series |
| Center Gender | Male to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | SMB to SMB |
