225699-1

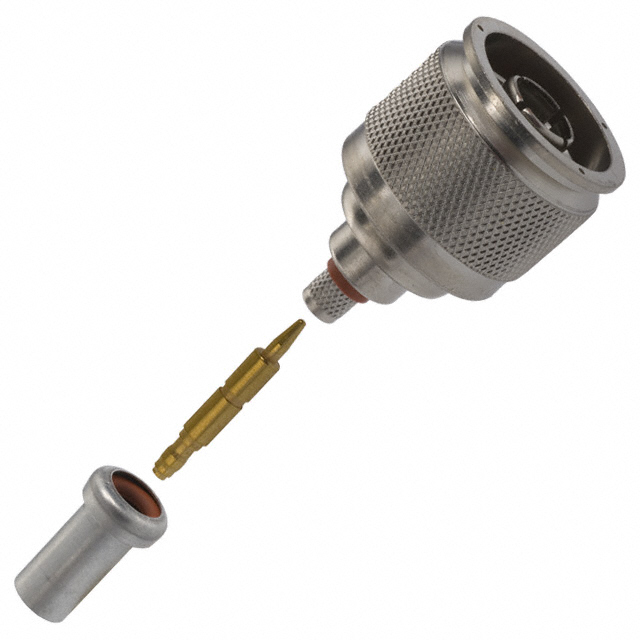

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 225699-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 225699-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 225699-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN N PLUG STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 225699-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN N PLUG STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5096 pcs | Data sheet | 225699 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Shield Termination | Crimp | Series | Coaxicon |
| Packaging | Bulk | Other Names | 225699-1-ND A24652 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Loss | - |
| Ingress Protection | Weatherproof | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Fluoropolymer (FP) |
| Detailed Description | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp | Contact Termination | Crimp |
| Connector Type | Plug, Male Pin | Connector Style | N Type |
| Center Contact Plating | Gold | Center Contact Material | - |
| Cable Group | RG-142, 142A, 142B | Body Material | - |
| Body Finish | Nickel |
