225550-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 225550-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 225550-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 225550-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TNC PLUG STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.685 | $10.546 | $10.104 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.473 | $9.157 | $8.652 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 225550-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TNC PLUG STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4345 pcs | Data sheet | 225550 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | Coaxicon |
| Packaging | Bulk | Other Names | 1122-1316 225550-1-ND A24638 A24638-MIL A24638-ND M39012/26B0016 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | Weatherproof |

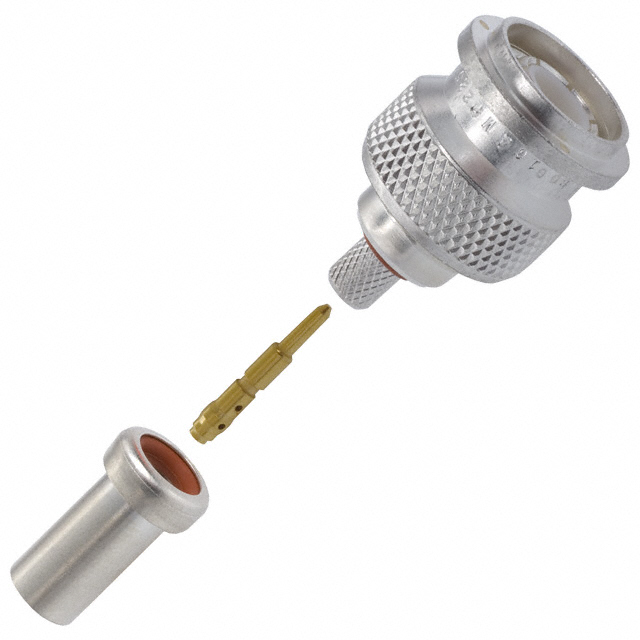

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp |
| Contact Termination | Crimp | Connector Type | Plug, Male Pin |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-55A, 223 |
| Body Material | Phosphor Bronze | Body Finish | Silver |
