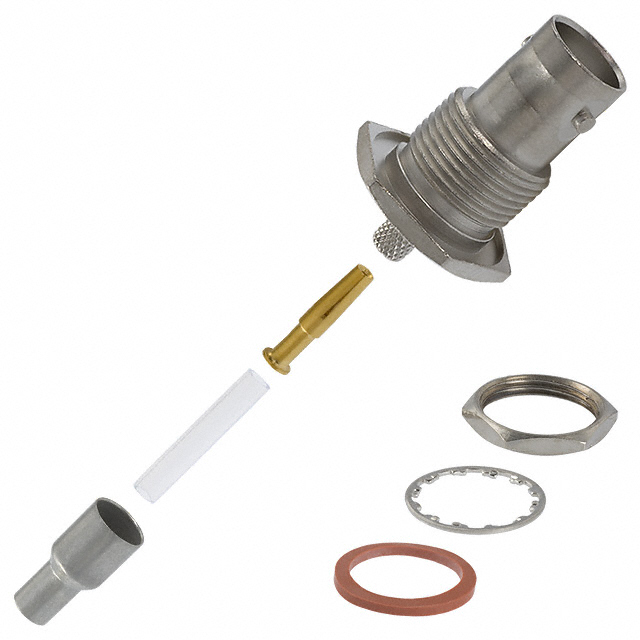

225398-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 225398-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 225398-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 225398-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BNC JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.336 | $4.849 | $4.728 | $4.364 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.122 | $3.758 | $3.516 | $3.225 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 225398-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 9704 pcs | Data sheet | 225398 |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 225398-7-ND A24465 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188 |
| Body Material | Brass | Body Finish | Nickel |
