2232511-8

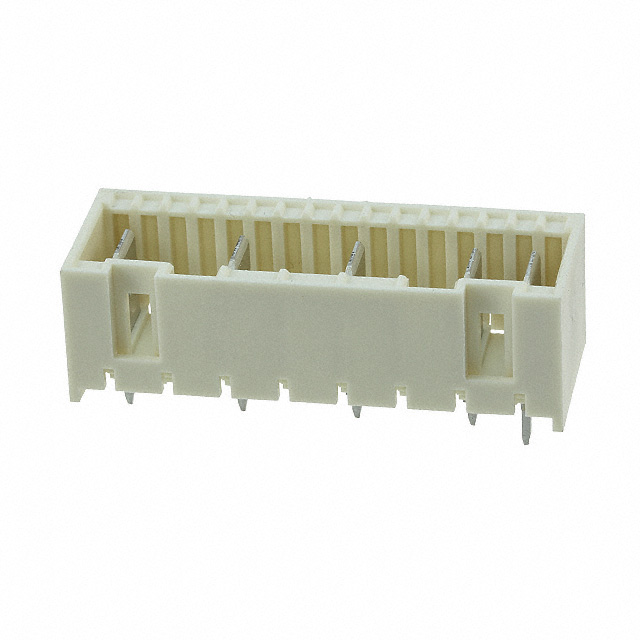

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2232511-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2232511-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2232511-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 8P, RAST 5 TAB HEADER, THV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.547 | $0.497 | $0.426 | $0.355 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.304 | $0.27 | $0.264 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2232511-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 8P, RAST 5 TAB HEADER, THV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91148 pcs | Data sheet | 2232511 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A120634 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | 5 |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Glow Wire Compliant | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 8 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | - | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
