2229806-1

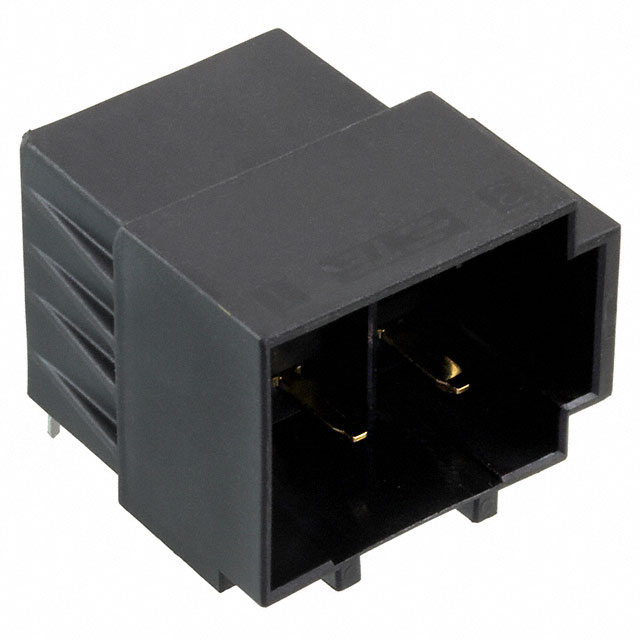

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2229806-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2229806-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2229806-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D3950 HDR ASSY 6P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5145 pcs | ||||
|---|---|---|---|---|---|
| $0.48 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2229806-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D3950 HDR ASSY 6P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71189 pcs | Data sheet | 2229806 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3950 |
| Row Spacing - Mating | - | Pitch - Mating | 0.295" (7.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A120627 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Insulation Height | 0.803" (20.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.295" (7.50mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | General Purpose, Industrial |
