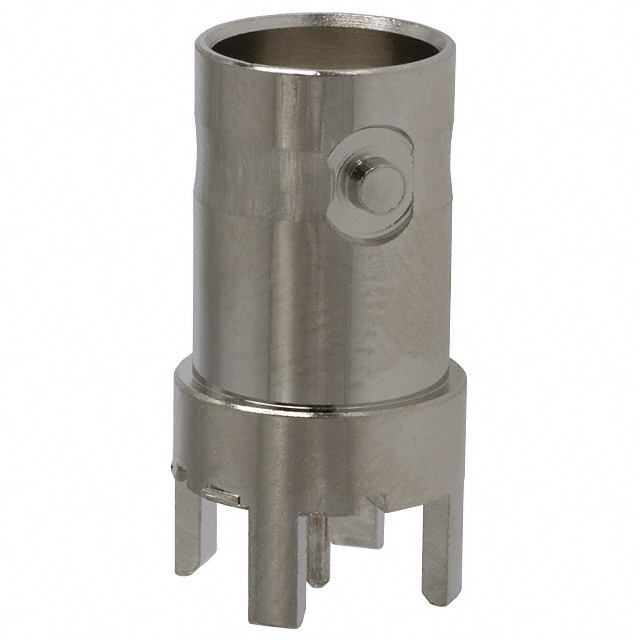

222420-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 222420-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 222420-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 222420-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BNC JACK STR 50 OHM PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.319 | $3.174 | $2.886 | $2.741 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.669 | $2.381 | $2.236 | $1.977 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 222420-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 15223 pcs | Data sheet | 222420 |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 222420-1-ND 2224201 A24516 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polyester | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Silver |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
