2204426-1

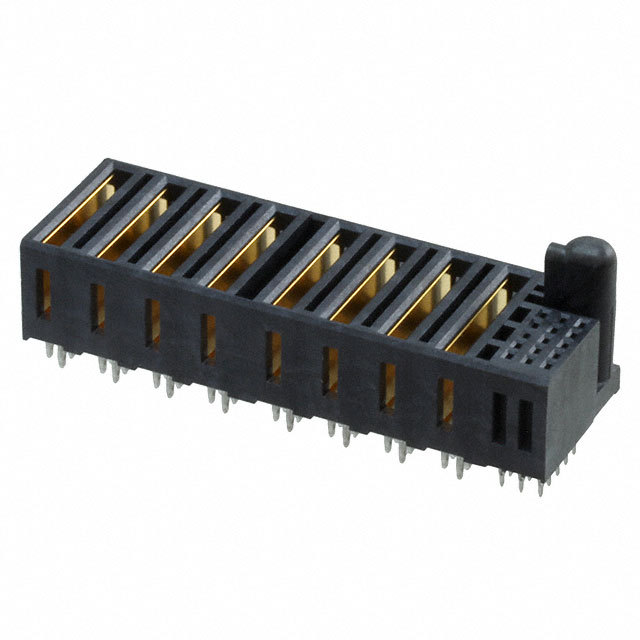

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2204426-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2204426-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2204426-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MULTI-BEAM HD VERTICAL REC. 15S+ |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 63 pcs | |
|---|---|---|---|---|---|
| $7.954 | $7.18 | $6.879 | $6.449 | ||
| 126 pcs | 252 pcs | 504 pcs | |||
| $6.234 | $5.89 | $5.718 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2204426-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MULTI-BEAM HD VERTICAL REC. 15S+ | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 5321 pcs | Data sheet | 2204426 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit | Series | MULTI-BEAM HD |
| Pitch | 0.079" (2.00mm) | Packaging | Tray |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 5 |
| Number of Positions Loaded | All | Number of Positions | 23 |
| Number of Columns | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Features | Guide Pin | Current Rating | - |
| Contact Layout, Typical | 15 Signal, 8 Power | Contact Finish Thickness | - |
| Contact Finish | - | Connector Usage | - |
| Connector Type | Receptacle, Female Blade Sockets | Connector Style | Multi-Beam |
| Color | Black |
