212630-5

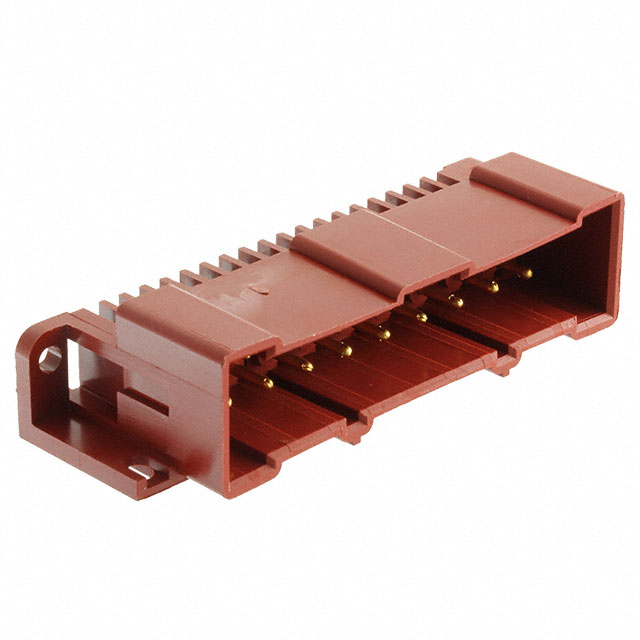

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 212630-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 212630-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 212630-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 19POS .200 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 212630-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 19POS .200 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4969 pcs | Data sheet | 212630 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Metrimate |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 130°C | Number of Rows | 2 |
| Number of Positions Loaded | 17 | Number of Positions | 19 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.750" (19.05mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 19 position 0.250" (6.35mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
