2118016-1

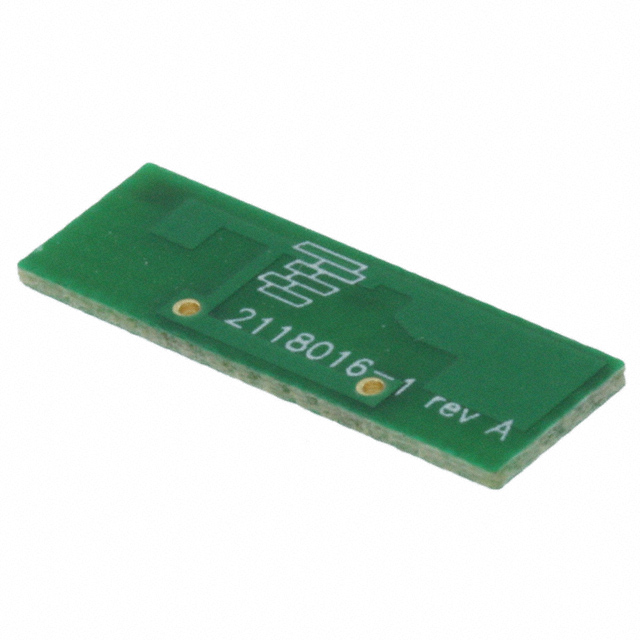

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2118016-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2118016-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2118016-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4/5.5GHZ PCB TRACE SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.725 | $0.654 | $0.584 | $0.526 | $0.467 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.409 | $0.339 | $0.315 | $0.304 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2118016-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4/5.5GHZ PCB TRACE SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78996 pcs | Data sheet | 2118016-1 Datasheet2118016 Drawing |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Bulk |
| Other Names | A107428 | Number of Bands | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.031" (0.79mm) |
| Gain | 2dB | Frequency Range | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| Features | - | Detailed Description | 2.4GHz, 5.5GHz Bluetooth, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz 2dB Solder Surface Mount |
| Applications | Bluetooth, WLAN, Zigbee™ | Antenna Type | PCB Trace |
