207614-3

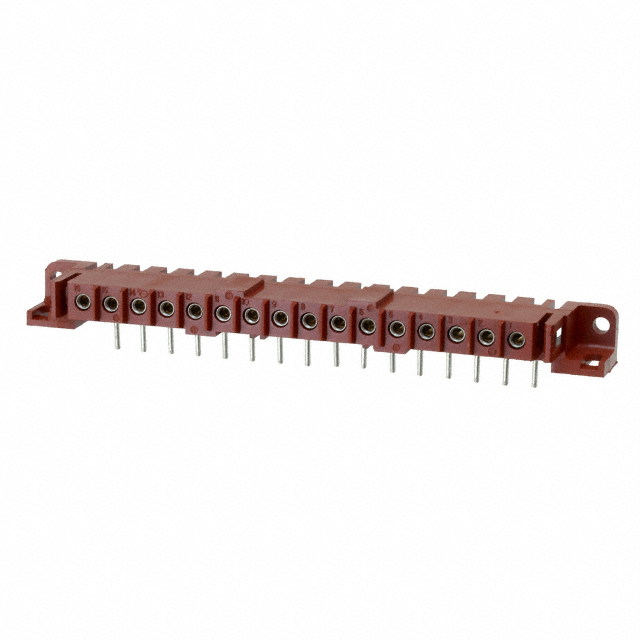

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 207614-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 207614-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 207614-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SKT HDR ASSY,16 POSN,METRIMATE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 207614-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SKT HDR ASSY,16 POSN,METRIMATE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5574 pcs | Data sheet | 207614 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Metrimate | Row Spacing - Mating | - |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Tray |
| Other Names | 207614-3-ND A115047 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.433" (11.00mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | 16 Position Header Connector 0.197" (5.00mm) Through Hole, Right Angle Gold | Current Rating | 7.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.186" (4.72mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
