207609-3

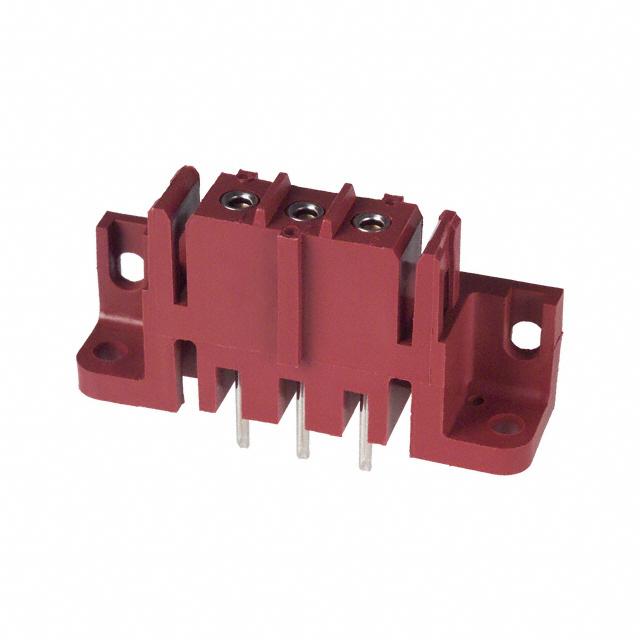

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 207609-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 207609-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 207609-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER SOCKT 3POS VERT GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.476 | $2.371 | $1.959 | $1.65 | $1.443 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 207609-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER SOCKT 3POS VERT GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 23568 pcs | Data sheet | 207609 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Metrimate | Row Spacing - Mating | - |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Tray |
| Other Names | 207609-3-ND 2076093 A30098 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.768" (19.50mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | 3 Position Header Connector 0.197" (5.00mm) Through Hole Gold |
| Current Rating | 7.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.186" (4.72mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
