207158-2

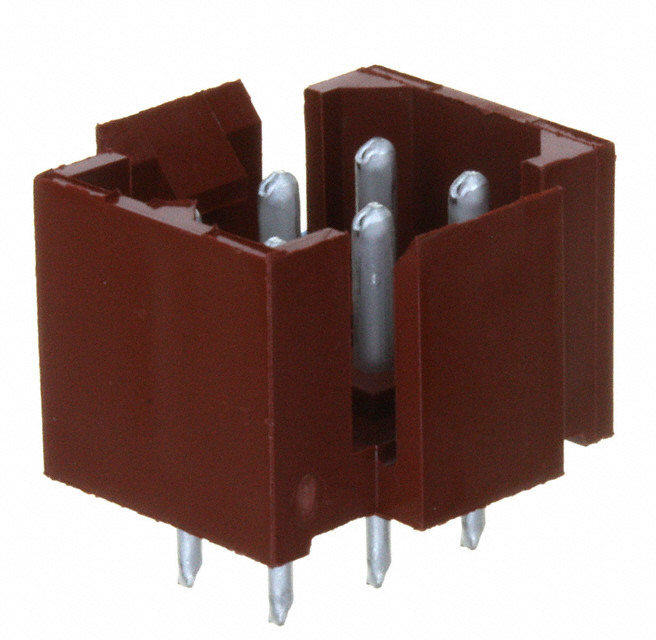

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 207158-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 207158-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 207158-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR PIN 6 POS METRIMATE TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.053 | $1.973 | $1.644 | $1.397 | $1.192 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 207158-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PIN 6 POS METRIMATE TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 31092 pcs | Data sheet | 207158 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Metrimate |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 2071582 | Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.464" (11.79mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 6 position 0.197" (5.00mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.181" (4.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
