206306-3

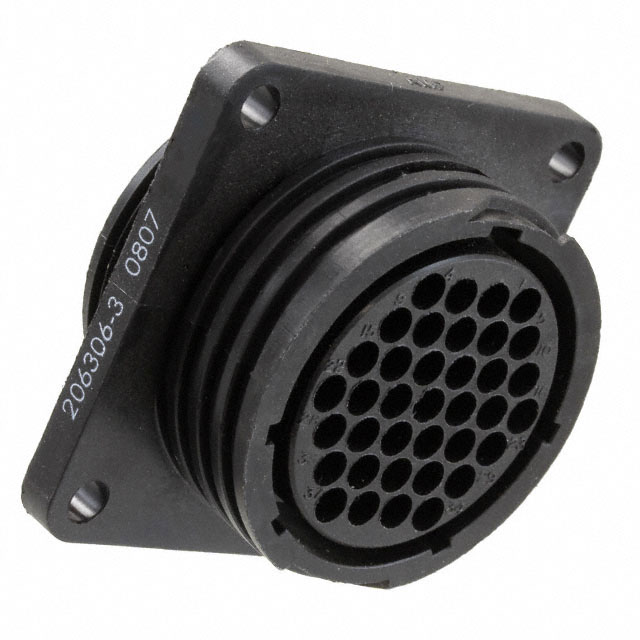

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 206306-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 206306-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 206306-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 37POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.704 | $3.544 | $3.222 | $3.061 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.98 | $2.658 | $2.497 | $2.207 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 206306-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 37POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15037 pcs | Data sheet | 206306 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 23-37 | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | CPC Series 1 |
| Packaging | Bulk | Other Names | 206306-3-ND A113015 |
| Orientation | A | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 37 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | Environment Resistant |
| Includes | - | Housing Color | Black |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 37 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
