204512-2

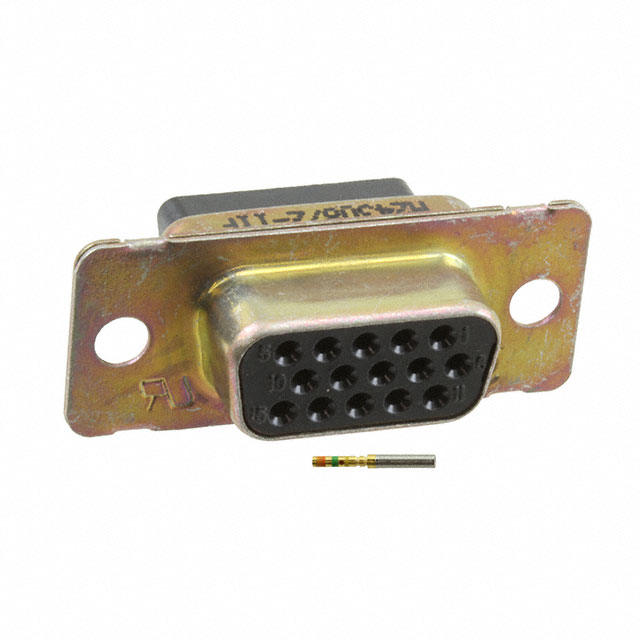

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 204512-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 204512-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 204512-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB HD RCPT 15POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $13.507 | $12.193 | $11.682 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.952 | $10.587 | $10.003 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 204512-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 15POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3394 pcs | Data sheet | HD-22 Series Instr Sheet204512 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Crimp |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Cadmium Plated |
| Series | Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 | Packaging | Bulk |
| Other Names | 1122-1254 1122-1254-MIL 204512-2-MIL 204512-2-ND M24308/2-11F M24308/2-11F-MIL M24308/2-11F-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | - | Backset Spacing | - |
