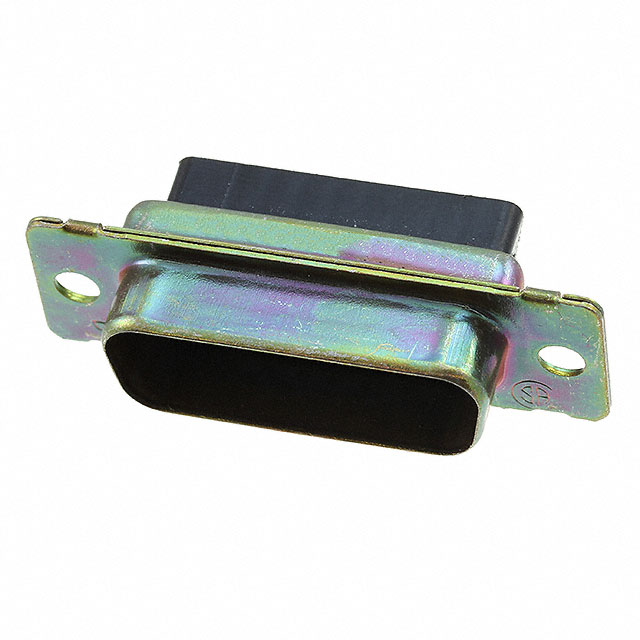

204503-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 204503-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 204503-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 204503-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG HD 26P SER 90 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.918 | $5.495 | $4.932 | $4.791 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.227 | $3.945 | $3.861 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 204503-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG HD 26P SER 90 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8838 pcs | Data sheet | 204503 Drawing |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 2 (DA, A) High Density |
| Shell Material, Finish | Steel, Cadmium Plated | Shell Finish Thickness | - |
| Series | Military, MIL-DTL-24308, AMPLIMITE 90 | Packaging | Bulk |
| Other Names | 1122-1177 1122-1177-MIL 204503-1-ND M24308/4-265F M24308/4-265F-MIL M24308/4-265F-ND |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions | 26 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Dielectric Material | - |
| Detailed Description | Plug for Male Contacts Housing D-Sub, High Density Connector 26 Position | Contact Type | Signal |
| Connector Type | Plug for Male Contacts | Connector Style | D-Sub, High Density |
| Color | - |
