2041321-3

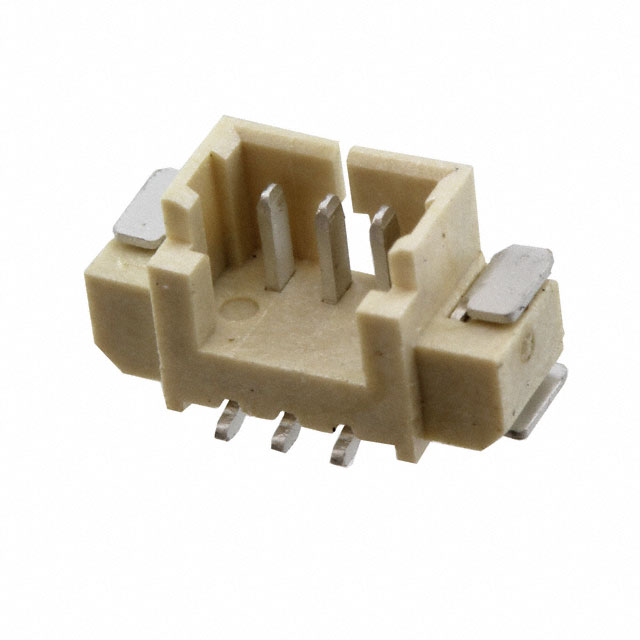

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2041321-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2041321-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2041321-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 1.25 WTB HDR SMT 3 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.089 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2041321-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 1.25 WTB HDR SMT 3 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 237993 pcs | Data sheet | 2041321 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A119369 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.187" (4.75mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount 3 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.089" (2.25mm) |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) | Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
