2029030-3

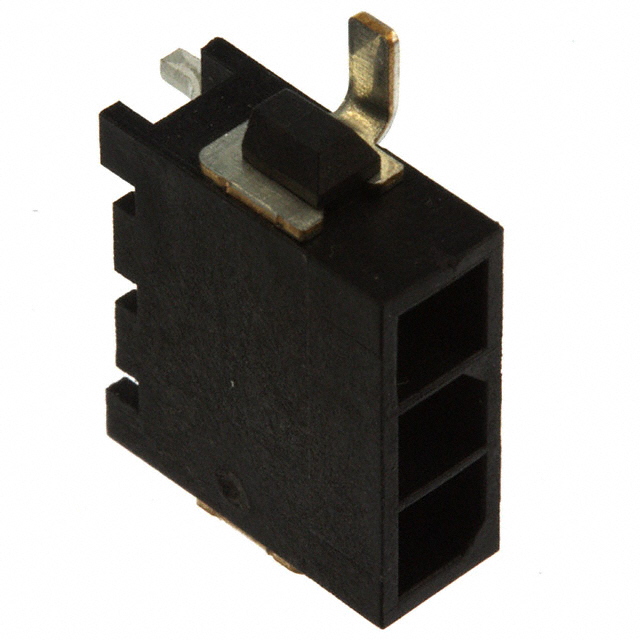

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2029030-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2029030-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2029030-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 3PS R/A SMD MICROMNL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 215 pcs | 430 pcs | 645 pcs | 1075 pcs | |
|---|---|---|---|---|---|
| $0.276 | $0.251 | $0.226 | $0.201 | ||
| 1505 pcs | 5375 pcs | 10750 pcs | 21500 pcs | ||
| $0.189 | $0.176 | $0.167 | $0.163 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2029030-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3PS R/A SMD MICROMNL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128692 pcs | Data sheet | 2029030-(2,3,4) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 20290303 A99182TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.152" (3.85mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.118" (3.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
