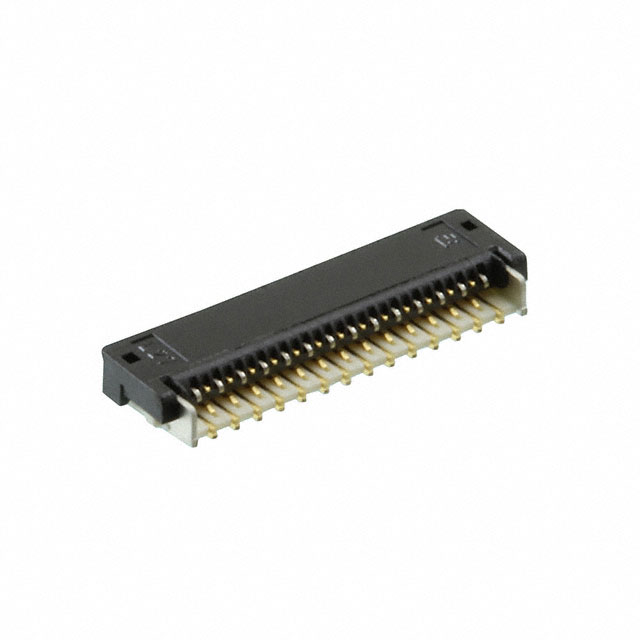

2013496-9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2013496-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2013496-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2013496-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | EMBOSS TAPING 0.3FPC NARROW BF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.434 | $0.383 | $0.36 | $0.345 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.33 | $0.30 | $0.27 | $0.24 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2013496-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EMBOSS TAPING 0.3FPC NARROW BF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92164 pcs | Data sheet | 2013496 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | - |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | A123388CT | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 27 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 31 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Natural |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 27 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
