2-84534-2

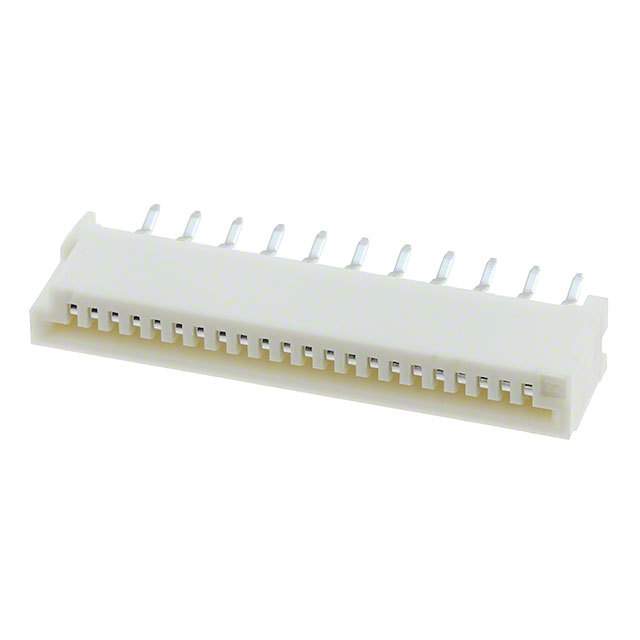

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-84534-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-84534-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-84534-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC VERT 22POS 1.25MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.313 | $0.277 | $0.26 | $0.249 | $0.239 | |
| 300 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.217 | $0.195 | $0.173 | $0.157 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-84534-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC VERT 22POS 1.25MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138910 pcs | Data sheet | 84534 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | - |
| Pitch | 0.049" (1.25mm) | Packaging | Bulk |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 22 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Housing Color | White |
| Height Above Board | 0.307" (7.80mm) | Flat Flex Type | FFC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 22 Position FFC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | - |
