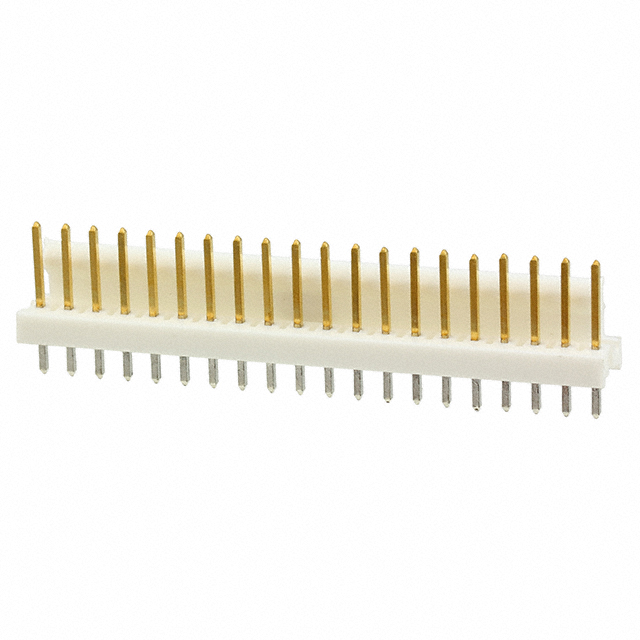

2-641215-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-641215-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-641215-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-641215-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 20PMTA100HDRASSYFL/ST30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.818 | $2.701 | $2.466 | $2.348 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.231 | $1.996 | $1.879 | $1.644 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-641215-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 20PMTA100HDRASSYFL/ST30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20843 pcs | Data sheet | 641215 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | MTA-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.535" (13.59mm) |
| Other Names | A108112 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.305" (7.75mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose |
