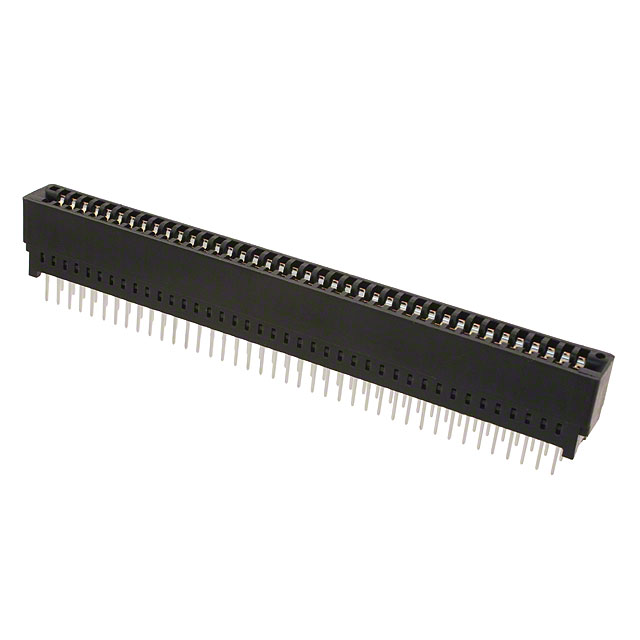

2-5530843-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-5530843-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-5530843-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-5530843-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN CARDEDGE FEMALE 80POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.759 | $1.69 | $1.549 | $1.479 | ||
| 160 pcs | 320 pcs | 640 pcs | 1120 pcs | ||
| $1.408 | $1.232 | $1.197 | $1.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-5530843-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN CARDEDGE FEMALE 80POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28744 pcs | Data sheet | Card Edge Products Catalog5530843 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 2-5530843-0-ND 255308430 A101955 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 80 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Multibus I | Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
