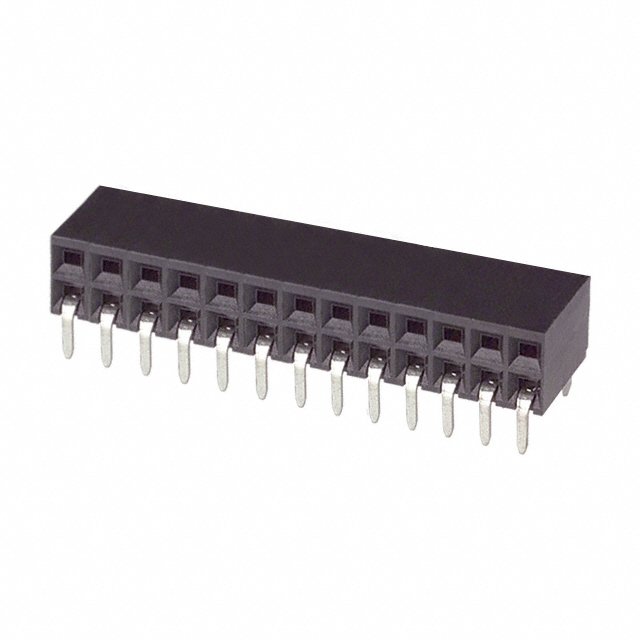

2-535512-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-535512-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-535512-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-535512-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 26POS .100 RT/A DUAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | 102 pcs |
|---|---|---|---|---|---|
| $1.394 | $1.336 | $1.225 | $1.169 | $1.113 | |
| 255 pcs | 510 pcs | 1003 pcs | 2516 pcs | ||
| $0.974 | $0.946 | $0.807 | $0.752 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-535512-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 26POS .100 RT/A DUAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 46308 pcs | Data sheet | 535512 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 2-535512-0-ND 25355120 A26441 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.238" (6.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 26 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
