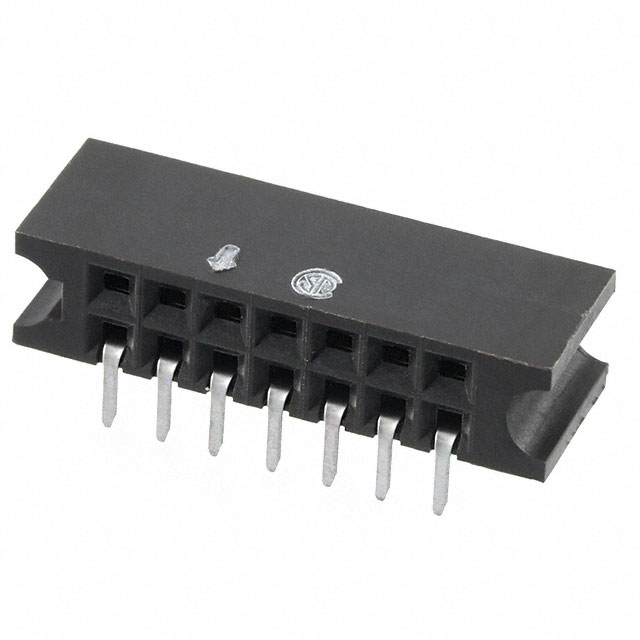

2-532955-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-532955-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-532955-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-532955-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 14POS DUAL .100 R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 105 pcs |
|---|---|---|---|---|---|
| $1.736 | $1.664 | $1.526 | $1.456 | $1.387 | |
| 315 pcs | 525 pcs | 1050 pcs | 2520 pcs | ||
| $1.214 | $1.179 | $1.006 | $0.936 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-532955-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 14POS DUAL .100 R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 35626 pcs | Data sheet | 532955 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 2-532955-5-ND A115126 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | - |
| Insulation Height | 0.238" (6.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Guide Pin Ears |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
