2-530745-2

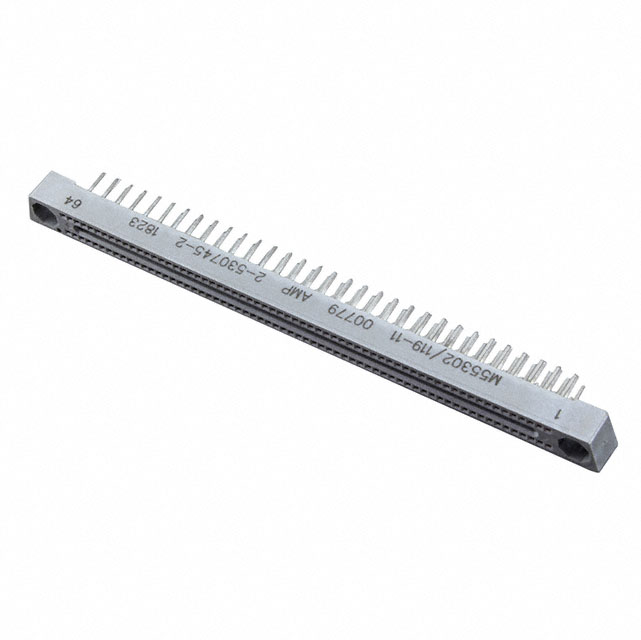

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-530745-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-530745-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-530745-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 128POS T/H 1.27MM AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $62.607 | $60.518 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-530745-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 128POS T/H 1.27MM AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 586 pcs | Data sheet | 530745 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Military, MIL-DTL-55302, Mini-Box | Row Spacing - Mating | 0.150" (3.81mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Other Names | 2-530745-2-ND A135605 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 128 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Mating Guide |
| Fastening Type | Push-Pull | Detailed Description | 128 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
