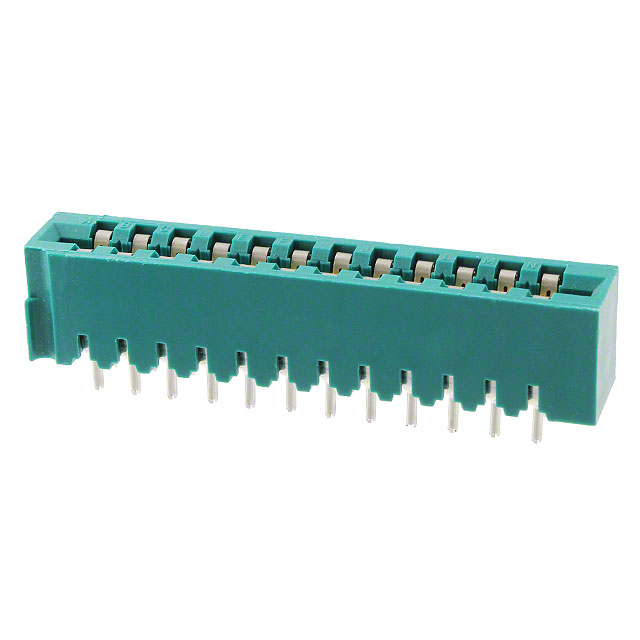

2-530666-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-530666-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-530666-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-530666-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 24POS 0.156 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.00 | $2.877 | $2.627 | $2.502 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.377 | $2.126 | $2.001 | $1.751 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-530666-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 24POS 0.156 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 21250 pcs | Data sheet | 530666 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | A108104 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 12 |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Green |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
