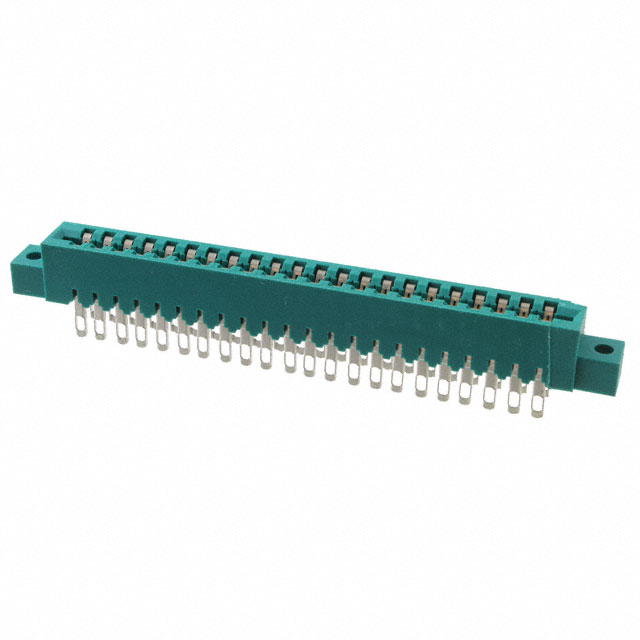

2-530654-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-530654-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-530654-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-530654-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 22POS 0.156 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $5.737 | $5.325 | $4.779 | $4.642 | ||
| 180 pcs | 270 pcs | 540 pcs | |||
| $4.096 | $3.823 | $3.741 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-530654-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 22POS 0.156 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 10387 pcs | Data sheet | 530654 |
| Category | Connectors, Interconnects | Termination | Solder Eyelet(s) |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | A108342 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 22 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Gender | Female | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Features | - | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Green |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
