2-521755-2

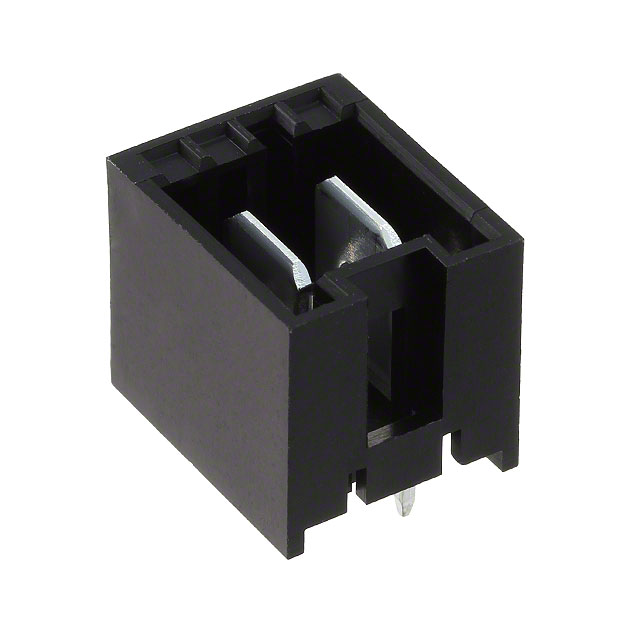

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-521755-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-521755-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-521755-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | ASSY DIN 2P SP VERT HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-521755-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | ASSY DIN 2P SP VERT HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5077 pcs | Data sheet | 521755 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119476 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 2 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Silver |
| Contact Finish - Mating | Silver | Connector Type | Header |
| Applications | General Purpose |
