2-36153-4

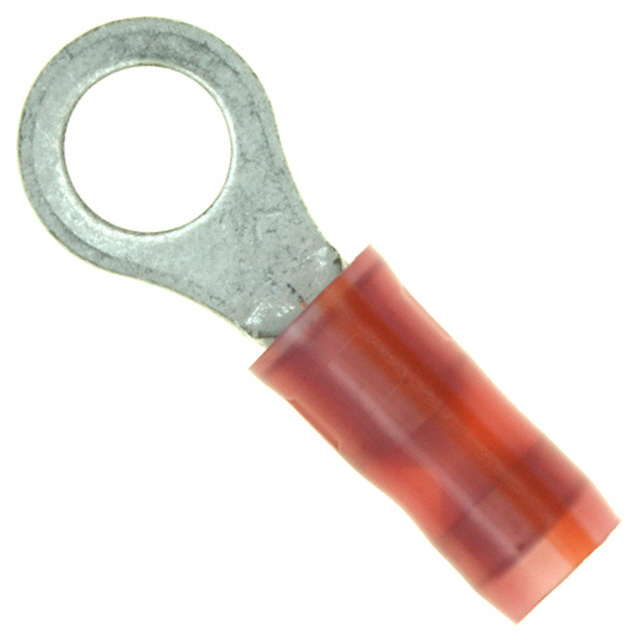

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-36153-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-36153-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-36153-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 20AWG #10 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.254 | $0.237 | $0.213 | $0.19 | $0.182 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.166 | $0.158 | $0.13 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-36153-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 20AWG #10 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 194610 pcs | Data sheet | 36153 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Width - Outer Edges | 0.312" (7.92mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 2-36153-4-ND A27342 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Overall | 0.909" (23.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.046" ~ 0.110" (1.17mm ~ 2.79mm) | Insulation | Insulated |
| Features | Insulation Restriction | Detailed Description | Ring Terminal Connector 10 Stud Circular 20 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red, Red Stripe |
