2-33156-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-33156-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-33156-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-33156-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

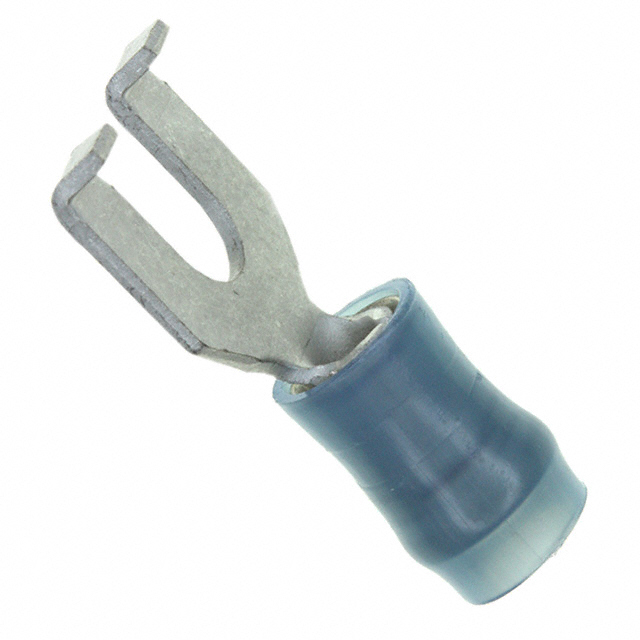

| Description | CONN SPADE TERM 14-16AWG #8 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 15000 pcs | ||||
|---|---|---|---|---|---|
| $0.161 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-33156-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #8 BLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122582 pcs | Data sheet | 33156 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.416" (10.57mm) | Tongue Inside Opening | 0.171" (4.34mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Termination | 0.404" (10.26mm) |
| Length - Ring Center to Termination | 0.250" (6.35mm) | Length - Overall | 0.830" (21.08mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG | Contact Material | Copper |
| Contact Finish | Tin | Color | Blue |
