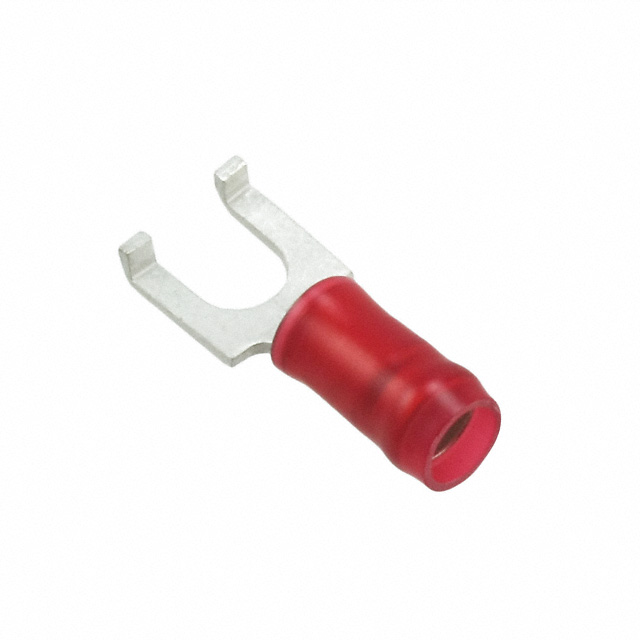

2-32562-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-32562-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-32562-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-32562-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | 25000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.061 | $0.057 | $0.055 | $0.054 | $0.053 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-32562-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #8 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 391330 pcs | Data sheet | 32562 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.296" (7.52mm) | Tongue Inside Opening | 0.171" (4.34mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-32562-3-ND 2325623 A100509TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 10 Weeks |
| Length - Termination | 0.404" (10.26mm) | Length - Ring Center to Termination | 0.203" (5.16mm) |
| Length - Overall | 0.768" (19.51mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
