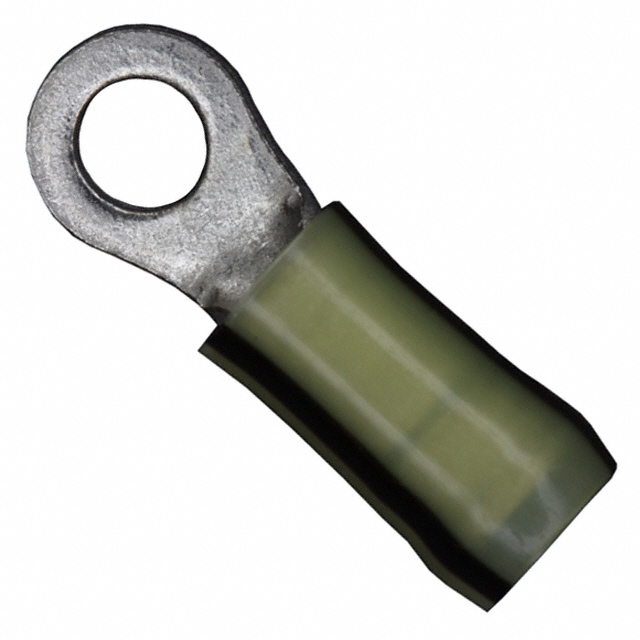

2-320630-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-320630-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-320630-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-320630-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 14-16AWG #10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | ||
|---|---|---|---|---|---|
| $0.123 | $0.119 | $0.113 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-320630-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 213444 pcs | Data sheet | 320630 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.343" (8.71mm) | Thickness | 0.048" (1.22mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-320630-2-ND 23206302 A09036TR A28126 A28126-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Overall | 1.046" (26.57mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) | Insulation | Insulated |
| Features | Heavy Duty, Serrated Termination | Detailed Description | Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow, Black Stripe |
