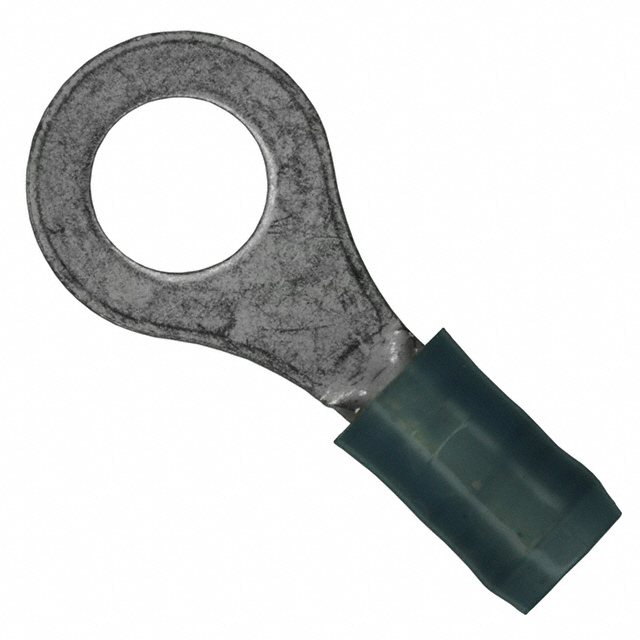

2-320563-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-320563-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-320563-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-320563-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 14-16AWG #1/4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | |
|---|---|---|---|---|---|
| $0.059 | $0.052 | $0.05 | $0.049 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-320563-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #1/4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 489300 pcs | Data sheet | 320563 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.469" (11.91mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 2-320563-2-ND 23205632 A27262TR A28121 A28121-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Overall | 1.078" (27.38mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Blue |
