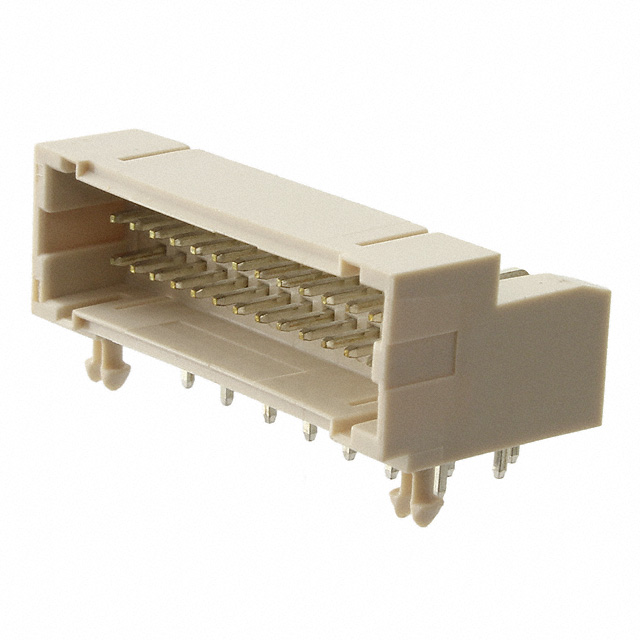

2-292262-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-292262-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-292262-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-292262-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER R/A 26POS DL ROW T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 480 pcs | 960 pcs | 1440 pcs |
|---|---|---|---|---|---|
| $1.967 | $1.888 | $1.376 | $1.219 | $1.14 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-292262-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER R/A 26POS DL ROW T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32959 pcs | Data sheet | 292262 |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini CT |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 22922626 A100977 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.358" (9.10mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.059" (1.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
