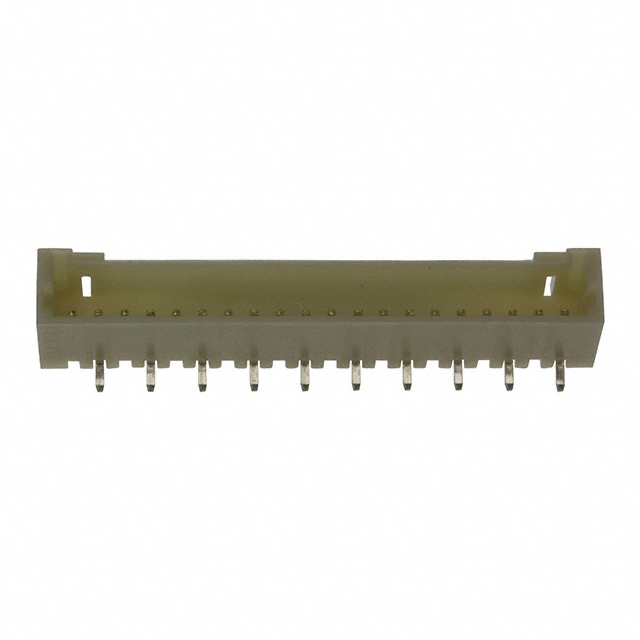

2-292230-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-292230-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-292230-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-292230-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 20POS VERT SMD TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.591 | $0.538 | $0.461 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-292230-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 20POS VERT SMD TIN | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 81399 pcs | Data sheet | 292230 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini CT |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A99791CT | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.272" (6.91mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 20 position 0.059" (1.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
