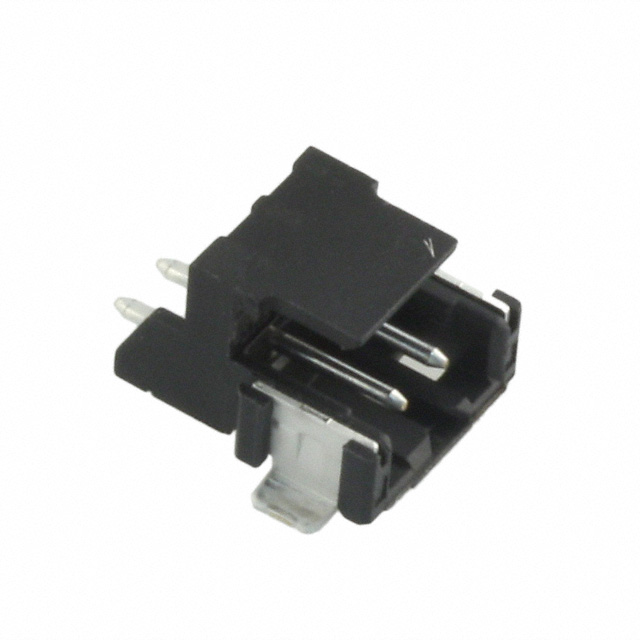

2-292173-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-292173-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-292173-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-292173-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 2POS SMD R/A TIN BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.429 | $0.377 | $0.325 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-292173-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS SMD R/A TIN BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60408 pcs | Data sheet | 292173 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CT |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Original-Reel® | Overall Contact Length | - |
| Other Names | A100981DKR | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Insulation Height | 0.228" (5.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.165" (4.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
