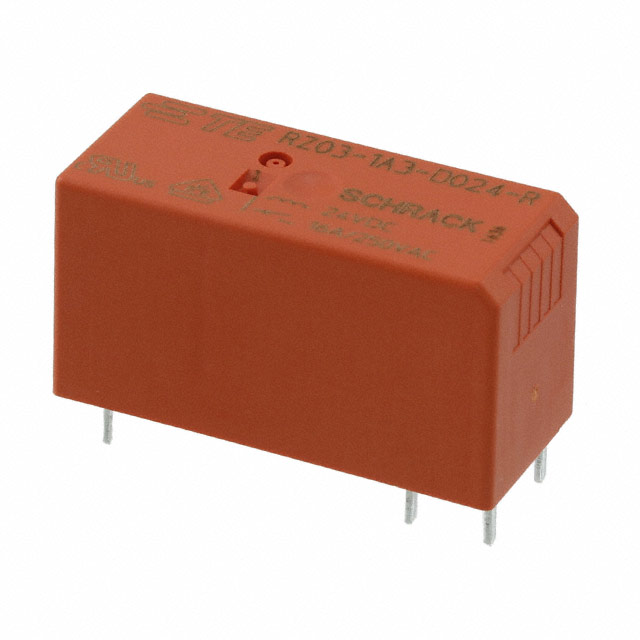

2-2158000-9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-2158000-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-2158000-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-2158000-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPST 16A 24V |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.785 | $0.737 | $0.655 | $0.622 | $0.589 | |
| 260 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.524 | $0.491 | $0.458 | $0.442 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-2158000-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 24V | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 80921 pcs | Data sheet | Definitions Datasheet |
| Category | Relays | Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | RZ, SCHRACK |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Tube | Operating Temperature | -40°C ~ 85°C |
| Operate Time | 8ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Features | Insulation - Class F, Sealed - Flux Protection |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole | Contact Rating (Current) | 16A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 1.44 kOhms | Coil Power | 400 mW |
| Coil Current | 16.7mA |
