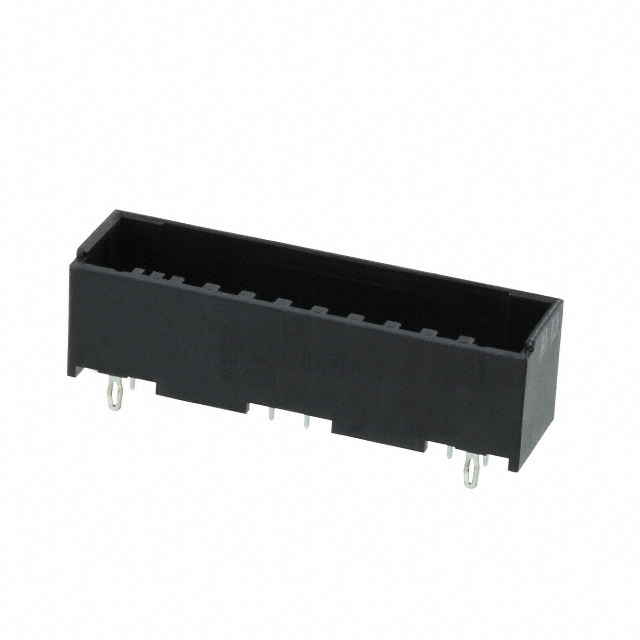

2-2013325-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-2013325-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-2013325-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-2013325-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC 1900D HDR ASSY V-TYPE 22 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.335 | $2.239 | $2.044 | $1.947 | $1.849 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.655 | $1.557 | $1.363 | $1.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-2013325-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC 1900D HDR ASSY V-TYPE 22 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27821 pcs | Data sheet | 2013325 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-1900 |
| Row Spacing - Mating | 0.130" (3.30mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A120589 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.490" (12.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 22 position 0.138" (3.50mm) |
| Current Rating | 4A | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
