2-1776489-3

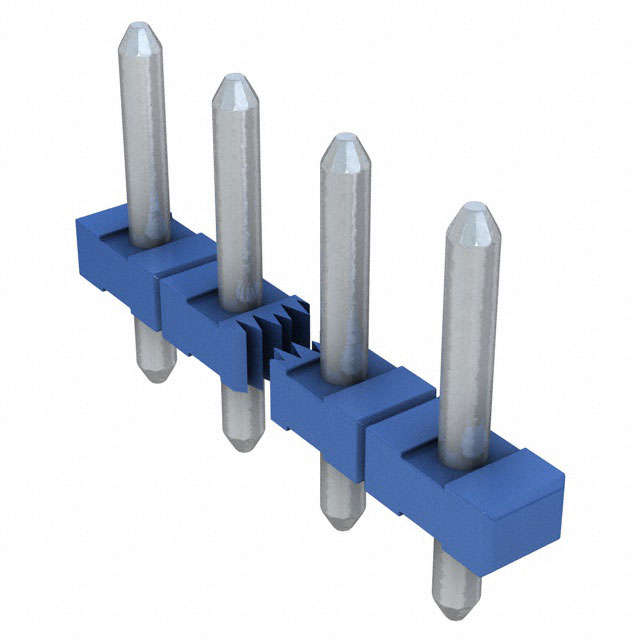

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-1776489-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-1776489-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-1776489-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK HDR 23POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-1776489-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK HDR 23POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4275 pcs | Data sheet | 1776489 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 250V | Type | Header, Male Pins, Unshrouded |
| Torque - Screw | - | Termination Style | Solder |
| Series | Buchanan | Screw Size | - |
| Positions Per Level | 23 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 23 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.079" (2.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 23 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Blue |
