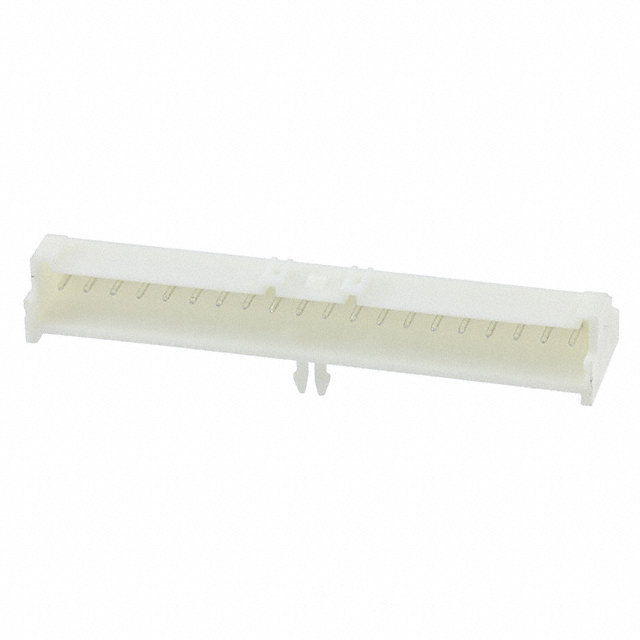

2-1744426-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-1744426-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-1744426-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-1744426-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HEADER HOUSING ASSY, EP 2.5 RA, |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.559 | $0.506 | $0.434 | $0.361 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.31 | $0.275 | $0.268 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-1744426-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HEADER HOUSING ASSY, EP 2.5 RA, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82143 pcs | Data sheet | Economy Power Connector Series Intro Datasheet1744426 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Economy Power 2.5 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A117448 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.299" (7.60mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm) | Current Rating | 4.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.141" (3.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial, Lighting |
