2-1586544-0

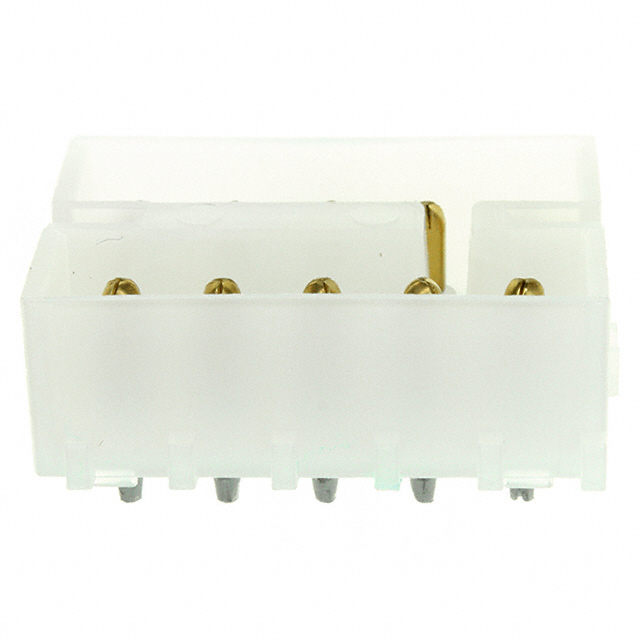

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-1586544-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-1586544-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-1586544-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 10 POS GOLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1400 pcs | ||||
|---|---|---|---|---|---|
| $1.238 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-1586544-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 10 POS GOLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28647 pcs | Data sheet | 1586544 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Commercial MATE-N-LOK |
| Row Spacing - Mating | 0.360" (9.14mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A33354 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.375" (9.53mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 10 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.181" (4.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose |
