2-1586038-2

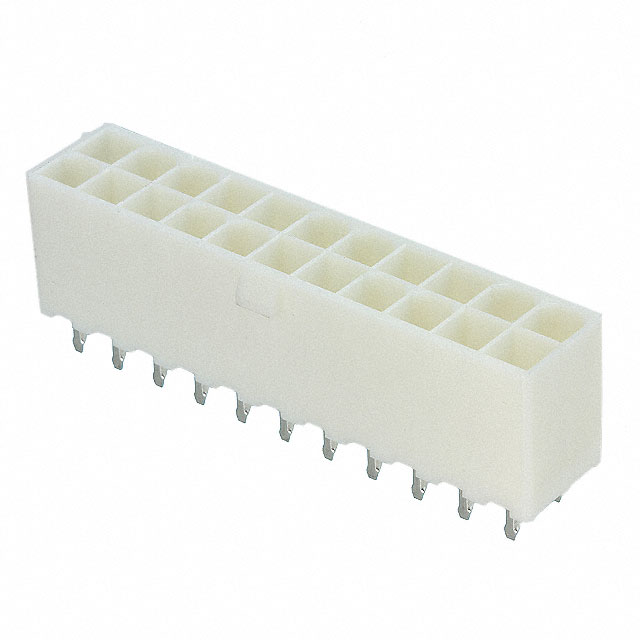

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-1586038-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-1586038-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-1586038-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 22POS VERT DUAL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.503 | $0.457 | $0.392 | $0.326 | ||
| 1080 pcs | 5040 pcs | 10080 pcs | |||
| $0.28 | $0.248 | $0.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-1586038-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 22POS VERT DUAL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88557 pcs | Data sheet | 1586038 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | VAL-U-LOK |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 28 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 22 position 0.165" (4.20mm) | Current Rating | 9A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass Alloy | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial, Lighting |
