2-1393480-2

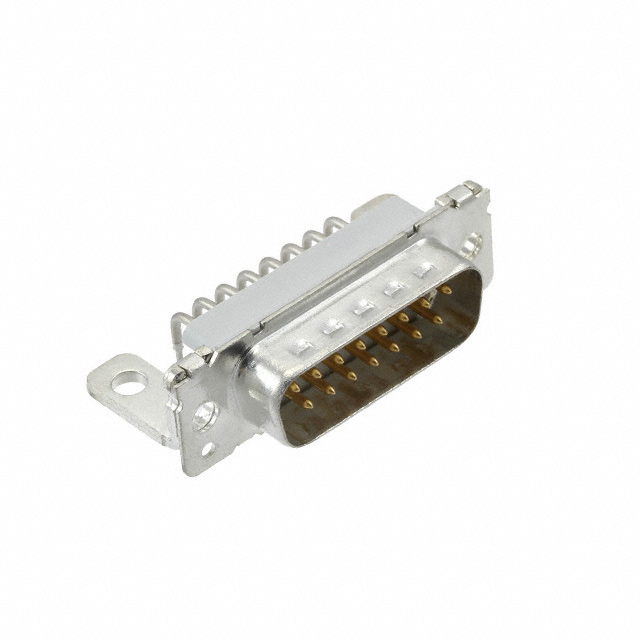

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-1393480-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-1393480-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-1393480-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.205 | $2.114 | $1.93 | $1.838 | $1.746 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.562 | $1.471 | $1.287 | $1.222 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-1393480-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29467 pcs | Data sheet | x-1393480-x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Bulk |
| Other Names | A117417 V23529B1121C215 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Grounding Indents, Mounting Brackets |
| Detailed Description | 15 Position D-Sub Plug, Male Pins Connector | Current Rating | 2.2A |
| Contact Type | Signal | Contact Material | - |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Gray |
| Backset Spacing | - |
