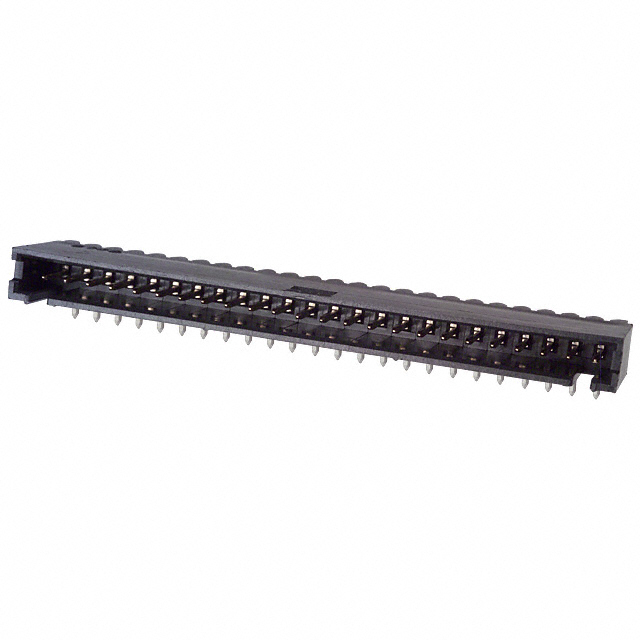

2-103361-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-103361-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-103361-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-103361-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER R/A .100 24POS 30AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 576 pcs | ||||
|---|---|---|---|---|---|
| $2.175 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-103361-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER R/A .100 24POS 30AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 15525 pcs | Data sheet | 103361 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 2-103361-2-ND A26689 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.214" (5.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
